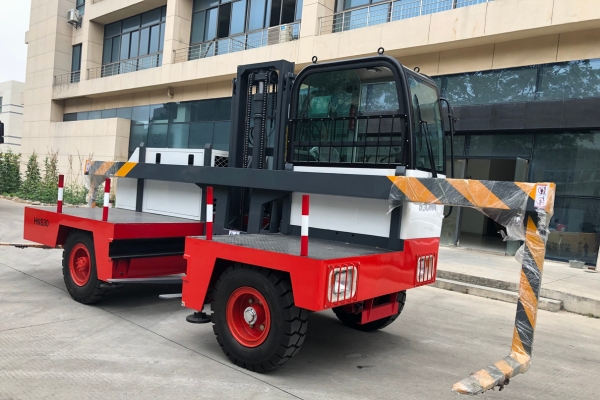

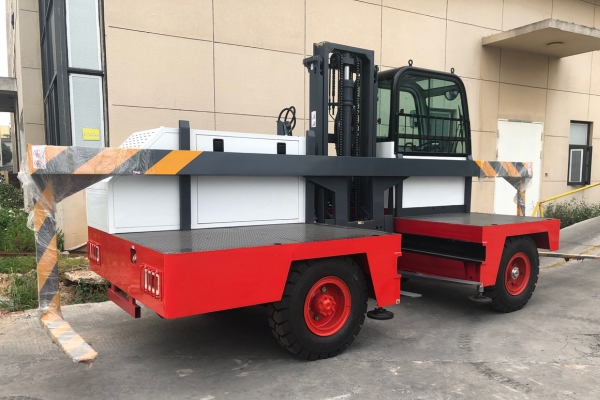

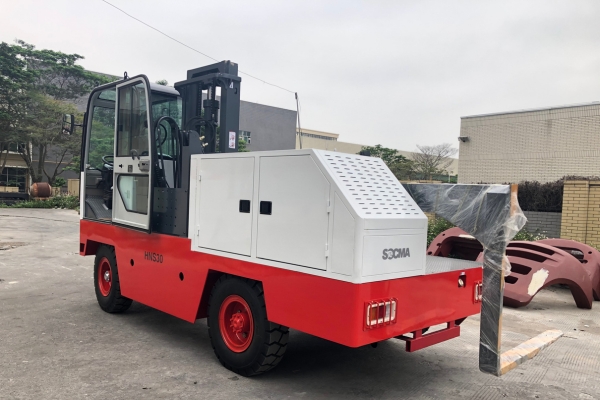

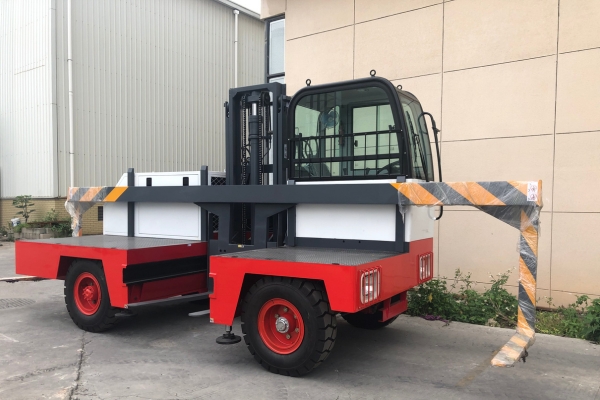

The SOCMA HNS30EL Electric Side Loader Forklift is designed for efficient loading, unloading, stacking, and transporting of long objects in indoor environments. With a 3-ton max lift capacity, a 3500 mm lift height, and an electric motor, it offers zero emissions and quiet operation.
The SOCMA HNS30EL Electric Side Loader Forklift is engineered for handling long objects in narrow aisles, featuring a 3-ton maximum lift capacity, a 3500 mm lift height, and an electric motor designed for zero-emission operation. Its design supports a 15% gradeability and a 4300 mm minimum turning radius.
Equipped with a driving system optimized for electric power, the HNS30EL offers a compact and reliable construction with low maintenance needs. The steering system uses a horizontal buy oil cylinder for agile steering, and the mast traverse mechanism ensures steady and reliable operation.
The cab features a novel construction with comfortable manipulation, a clear field of view, and good ventilation. Developed by Fujian SOCMA, this electric forklift combines advanced technology for high productivity in environmentally sensitive indoor settings.
Max Lift Capacity/CG of Cargo: 3000 kg/600 mm
Max Lift Height (Laden): 3500 mm
Max Lift Speed (Laden): 0.25 m/s
Max Traveling Speed (Laden): 12 km/h
Fork Tilt Angle (Front/Rear): 5/3 degrees
Minimum Turning Radius: 4300 mm
Gradeability (Laden): 15%
Minimum Ground Clearance (Laden): 170 mm
Platform Height: 920 mm
Platform Width: 1200 mm
Fork Length: 1200 mm
Max Fork Spacing: 1400 mm
Axle Spacing: 2400 mm
Wheel Spacing: 1600 mm
Tire Model (Before/After only): 8.25-15 2/2
Overall Dimension (L×W×H): 4420 x 2035 x 2700 mm
Weight Unladen: 5000 kg
Motor Power: 25 kW
Battery Voltage/Capacity: 80V/600Ah
Charging Time: 6-8 hours
