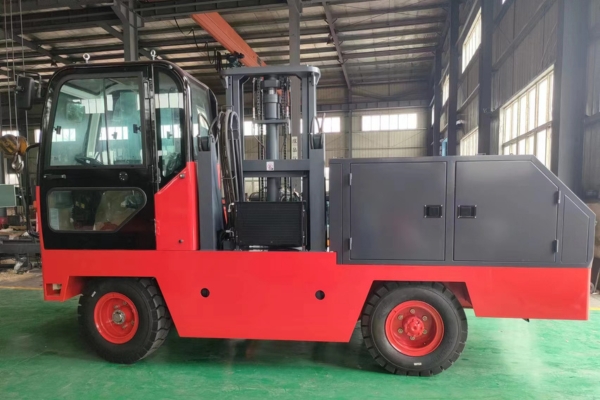

The SOCMA HNS40 Diesel Side Loader Forklift is designed for efficient loading, unloading, stacking, and transporting of long objects. With a 4-ton max lift capacity, a 3000 mm lift height, and a 48 kW JD4D30S engine, it ensures reliable performance in demanding environments.
The SOCMA HNS40 Diesel Side Loader Forklift is engineered for handling long objects, featuring a 4-ton maximum lift capacity, a 3000 mm lift height, and a JD4D30S engine delivering 48 kW at 2300 rpm. Its robust design supports a 22% gradeability and a 4300 mm minimum turning radius.
Equipped with a driving axle powered by a clutch gearbox and chain drive, the HNS40 offers a compact and reliable construction with convenient maintenance. The steering system uses a horizontal buy oil cylinder for agile steering, and the mast traverse mechanism ensures steady and reliable operation.
The cab features a novel construction with comfortable manipulation, a clear field of view, and good ventilation. Developed by Fujian SOCMA since 1976, this forklift combines advanced technology for high productivity in industrial settings.
Max Lift Capacity/CG of Cargo: 4000 kg/600 mm
Max Lift Height (Laden): 3000 mm
Max Lift Speed (Laden): 0.3 m/s
Max Traveling Speed (Laden): 24.8 km/h
Fork Tilt Angle (Front/Rear): 5/3 degrees
Minimum Turning Radius: 4300 mm
Gradeability (Laden): 22%
Minimum Ground Clearance (Laden): 170 mm
Platform Height: 920 mm
Platform Width: 1200 mm
Fork Length: 1200 mm
Max Fork Spacing: 1400 mm
Axle Spacing: 2400 mm
Wheel Spacing: 1600 mm
Tire Model (Before/After only): 8.25-15 2/2
Overall Dimension (L×W×H): 4420 x 2035 x 2700 mm
Weight Unladen: 6000 kg
Engine Model: JD4D30S
Norm Power: 48 kW at 2300 rpm
Max Torque/Speed: 223 N·m at 1600 rpm
